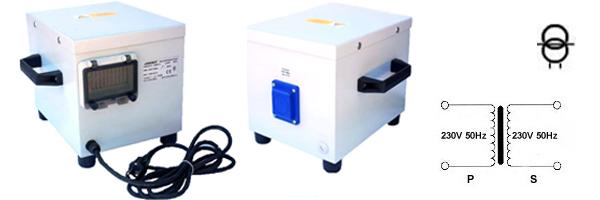

Portable isolation transformers
They are used where the use of separate circuits from the mains is required. They are mainly used in wet tank environments, but also in other difficult conditions and are designed to be compact and easily portable, making it easy to use them in different locations as needed.
Type range: TR 9409/4 to TR 9415/4.
We manufacture portable transformers according to the standard STN EN 61558-2-4.
| TYPE | CAPACITY [VA] |
DIMENSIONS [mm] | WEIGHT [Kg] | ||
| A | B | C | |||
| Transformer TR 9409 /4 - 500 PREN | 500 | 250 | 320 | 280 | 9 |
| Transformer TR 9409 /4 - 1000 PREN | 1000 | 250 | 320 | 280 | 18 |
| Transformer TR 9409 /4 - 1500 PREN | 1500 | 250 | 320 | 280 | 22 |
| Transformer TR 9409 /4 - 2000 PREN | 2000 | 250 | 320 | 280 | 25 |
| Transformer TR 9409 /4 - 2500 PREN | 2500 | 250 | 320 | 280 | 29 |
| Transformer TR 9409 /4 - 3000 PREN | 3000 | 250 | 320 | 280 | 35 |
| THERMAL CLASS: | F155°C |
| VOLTAGE WITHSTAND: | prim. / sek. 4,75kV 50Hz |
| SHORT-CIRCUIT RESISTANCE: | SHORT-CIRCUIT RESISTANT |
| TEMPERATURE RISE (HEAT RUN): | 85 °C |
| THERMAL PROTECTION | bi-metal 125°C |
| PROTECTION: | IP44 |
| AMBIENT TEMPERATURE: | max. 40°C |
| PROTECTION: | 1 phase circuit breaker + undervoltage coil |
Our recommendations
- based on the customer's request, we can install a thermal fuse for 125 °C - returnable
- technical changes and transformation ratios are possible based on customer requirements
