IP54 enclosure transformers
Encapsulated transformers for swimming pool lighting

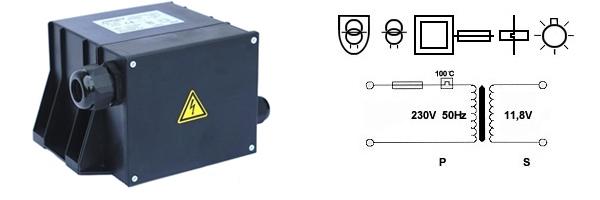

Single-phase safety protection transformers encapsulated in a plastic box with protection ratings up to IP54 are mainly used for supplying pool lights, but also for other applications where a high protection transformer is required.
| TYPE | CAPACITY [VA] |
DIMENSIONS [mm] | WEIGHT [Kg] |
|||||
| A | B | C | D | E | F | |||
| Transformer TR9600/60 SWS | 1x50 | 150 | 106 | 80 | 103 | 33 | 6 | 2,0 |
| Transformer TR9600/105 SWS | 2x50 | 150 | 120 | 80 | 103 | 45 | 6 | 2,3 |
| Transformer TR9600/105 SWS | 1x100 | 150 | 120 | 80 | 103 | 45 | 6 | 2,3 |
| Transformer TR9600/200 SWS | 2x100 | 165 | 140 | 89 | 115 | 65 | 6 | 4,4 |
| Transformer TR9600/300 SWS | 1x300 | 200 | 155 | 115 | 150 | 65 | 9 | 6,0 |
| Transformer TR9600/300 SWS | 2x300 | 200 | 175 | 115 | 150 | 85 | 9 | 8,0 |
| THERMAL CLASS: | B130°C |
| SHORT-CIRCUIT RESISTANCE | CONDITIONALLY SHORT-CIRCUIT RESISTANT |
| PROTECTION CLASS: | II. |
| PROTECTION: | IP54 |
| PROTECTION: | THERMAL FUSE REVERSIBLE 120°C |
| VOLTAGE WITHSTAND: | 4,75kV |
| OUTLETS: | CABLE OUTLET PG |
| ENCAPSULATING COMPOUND: | POLYURETHANE |
| AMBIENT TEMPERATURE: | ta40 |
Our recommendations
- technical changes and transformation ratios are possible based on customer requirements
